Marca: | TAEHA |
Certificazione: | CE |
Numero di modello: | 10, 5 pollici |
Minimum Order Quantity: | 1 |
---|---|
Prezzo: | Negoziabile |
Packaging Details: | Carton |
Delivery Time: | 1-7Work Days After Payment |
Payment Terms: | T/T, Western Union,Paypal |
Supply Ability: | 5000 Pieces/1Month |
Colore: | Rosso Verde Nero | Materiale diaframma: | NBR |
---|---|---|---|
Gomma nitrilica convenzionale (NBR): | -20 ℃~80 ℃, Adatto per condizioni di asciugatura a temperatura ambiente. | Fluororubber (FKM): | -20 °C~200 °C (alcuni modelli possono raggiungere i 260 °C), adatti ad ambienti ad alta temperatura |
Marca: | TAEHA | Gamma di pressione di lavoro: | 0.4-0.7MPa |

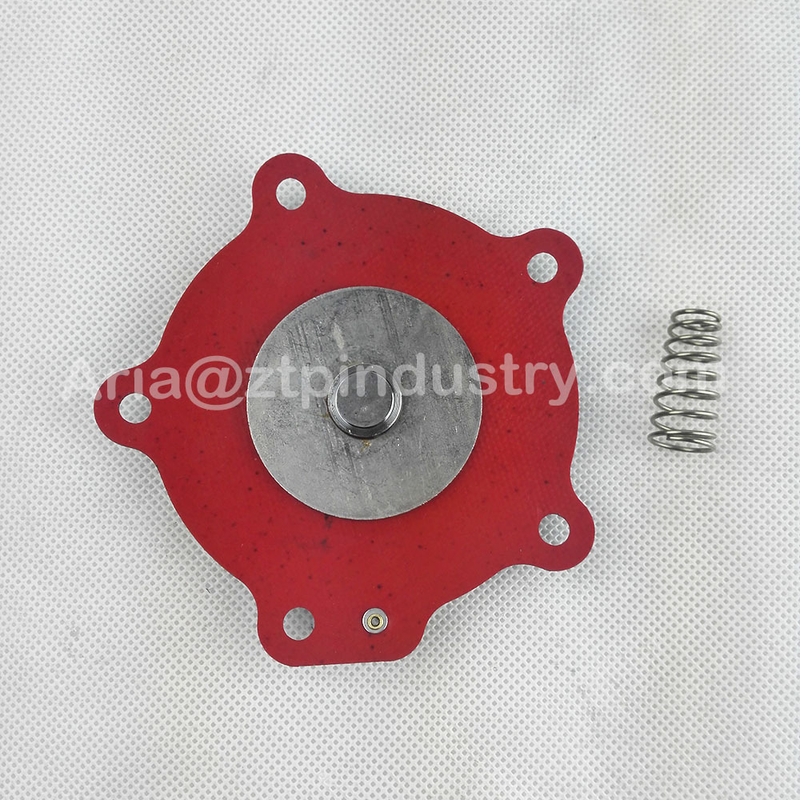

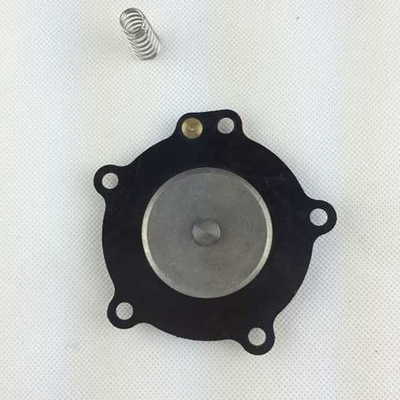

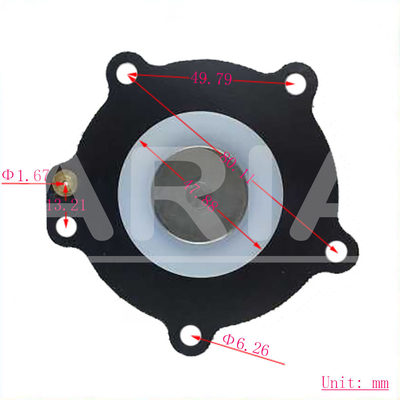

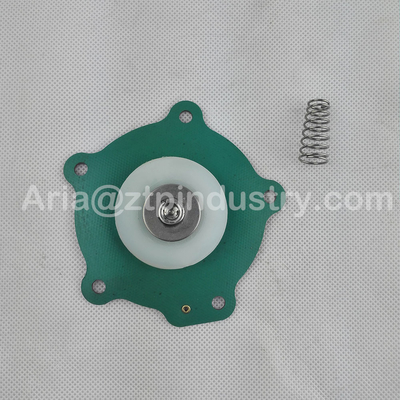

Evidenziare: | 1.5-inch pulse valve diaphragm,Taeha River pulse valve diaphragm,TH-5440-M replacement diaphragm |
The material of the pulse valve diaphragm is the key to determining its performance. Dahe pulse valve diaphragms mostly use elastomer materials. The common types and their characteristics are as follows:
Some high-end models will use composite materials (such as rubber combined with fabric skeleton) to enhance tear resistance and strength.
Elasticity and Resilience:
The diaphragm needs to open and close quickly under the impact of high-frequency (several to dozens of times per minute) pulse airflow. Therefore, it must have high elasticity to ensure that the sealing surface fits tightly without leakage; resilience ensures that it is not easy to deform after long-term use.
Tensile Strength and Tear Strength:
During operation, the diaphragm will be subjected to tensile force generated by air pressure. Insufficient tensile strength can easily lead to rupture; tear strength prevents further expansion of edges or tiny damaged areas, extending the service life.
Hardness:
Materials with Shore hardness of 60~80A are usually used. Too low hardness can easily lead to poor sealing, and too high hardness will affect elasticity and response speed.
Temperature Resistance:
The appropriate material is selected according to the working temperature. For example, fluororubber diaphragms are needed for high-temperature dust collectors (flue gas temperature above 120℃), and nitrile rubber diaphragms can be used for normal temperature working conditions.
Sealing Performance:
The fitting surface between the diaphragm and the valve seat needs to be precisely processed to ensure complete sealing when there is no pulse signal, preventing compressed air leakage, and avoiding energy waste and reduction of dust removal efficiency.
Response Speed:
Triggered by the pulse control signal, it needs to open quickly (usually in milliseconds) to make compressed air spray into the filter bag instantly to complete ash cleaning; it also closes quickly to reduce invalid jet time.
Medium Resistance:
It needs to withstand moisture and oil stains in compressed air (or clean air after drying and purification), as well as dust that may rush back (such as when the filter bag is damaged). Therefore, it must have the characteristics of wear resistance and chemical erosion resistance.
Conventional nitrile rubber (NBR) | -20 ℃~80 ℃, Suitable For Room Temperature Drying Conditions |
Fluororubber (FKM) | -20 ℃~200 ℃ (some Models Can Reach 260 ℃), Suitable For High Temperature And Corrosive Environments (such As Chemical And Waste Incineration) |
Working pressure range | 0.4-0.7MPa |
Diaphragm Material | NBR |
Brand | TAEHA |
Color | Red Green Black |
Working Condition Adaptation: The material is selected according to the temperature of the dust removal system, medium (oil-containing, corrosive gas, etc.), and pulse pressure (usually 0.2~0.6MPa). For example:
Service Life: Under normal working conditions, the service life of high-quality diaphragms can reach 100,000~300,000 pulse cycles (about 1~3 years), which depends on the material, working temperature, pulse frequency and maintenance conditions. Improper maintenance (such as a large amount of moisture in compressed air leading to accelerated aging of the diaphragm) will significantly shorten its service life.
In conclusion, the core properties of Dahe pulse valve diaphragm can be summarized as " high elasticity, strong sealing, fatigue resistance, and strong adaptability ". Its performance is directly related to the stable operation of the pulse valve and even the entire dust removal system. When selecting, the material, size and mechanical properties should be comprehensively considered in combination with the actual working conditions.
Product Name: Pulse Valve Diaphragm
Description: High-quality diaphragm for pulse valves, made of durable material for long-lasting performance.
Package Includes: 1 x Pulse Valve Diaphragm
Shipping Information:
- Shipping Method: Standard Shipping
- Estimated Delivery Time: 5-7 business days
- Shipping Cost: $5.99
Persona di contatto: Aria
Telefono: +8617371234005
