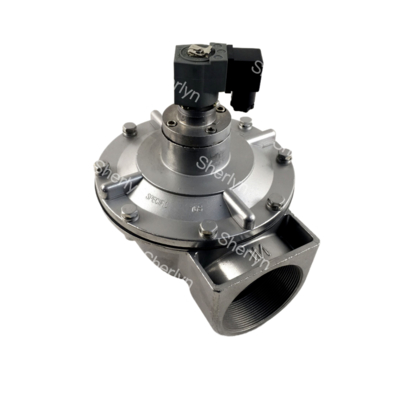

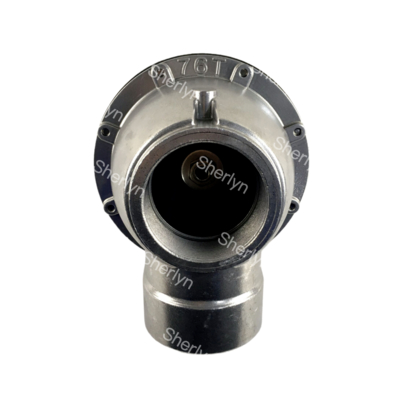

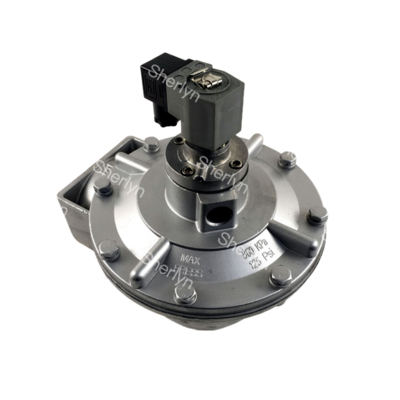

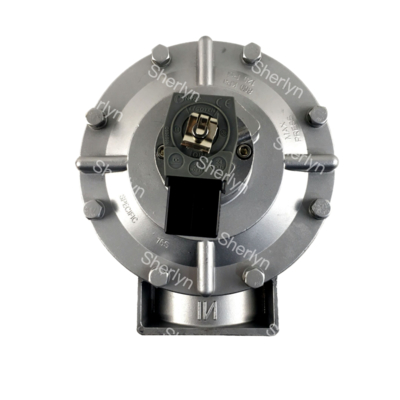

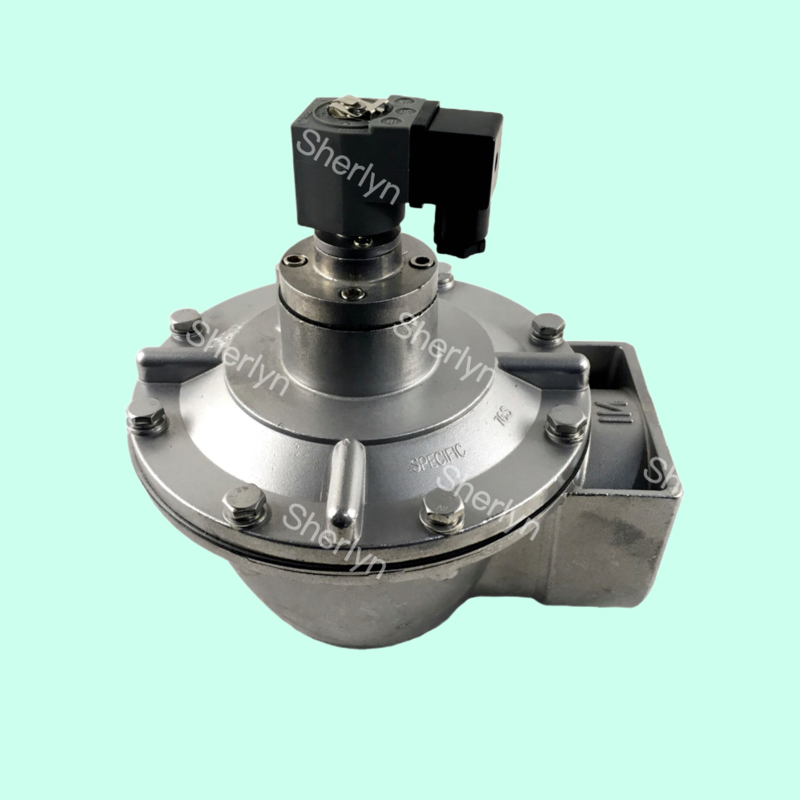

GOYEN 3-inch Right Angle Electromagnetic Pulse Valve CA76T010-300 CA76T010-305 Right Angle pulse Valve

Product Description:

Pulse Jet Valve Description:
The Pulse Jet valve is a type of valve that converts a continuous input signal into a pulsed signal through the delay effect of gas flowing through gas resistance and gas capacitance.

Inner Structure:
The inner structure of the air inlet of the right angle Pulse Jet valve is designed to incorporate the installation and use of a positioning steel ring. This feature helps prevent loosening caused by inertial impacts and ensures precise positioning during installation.

Long-Term Durability:
Even after prolonged usage, the stainless steel nut of the Pulse Jet valve can still maintain its functionality, allowing for convenient disassembly and reassembly as needed.

Applications:

Bag Filter Pulse Cleaning System
Function: Control the instantaneous injection of compressed air into the filter bag to remove surface dust.

Applicable equipment:

• Cement plant rotary kiln dust collector
• Steel plant blast furnace gas purification system
• Bag dust removal device for coal-fired power plants
• Dust collection system for chemical/pharmaceutical industry
• Material conveying and pneumatic conveying system

Used for pulse airflow dredging when pipelines are blocked (such as grain and fly ash conveying pipelines).

CA76T 3'' Inch Right Angle Diaphragm Baghouse Pulse Jet Valve

This is CA76T Goyen Type Right Angle Pulse Jet Valve; Reference No: CA76T000, CA76T001, CA76T010, CA76T000-300, CA76T001-300, CA76T010-300, CA76T000-305, CA76T001-305, CA76T010-305, CA76T000-331, CA76T001-331, CA76T010-331. Threaded port connection; NBR diaphragm; 24V DC, 220V AC (50/60Hz) voltages for you to choose; other voltages can be customized.

Right-angle electromagnetic pulse valve, the angle between its inlet and outlet is 90°. This type of pulse valve is mainly connected in different ways, which is suitable for the installation and connection of the air bag and the spray pipe of the dust collector. , The filter bag is sprayed row by row (room) to clean the dust to keep the strain of the dust collector within the set range to ensure the processing capacity and dust collection efficiency of the dust collector

Description:

This series of pulse jet valves includes models with threaded connections from 3/4'' to 3''. These valves are particular used for reverse pulse-jet filter cleaning of filter bags, cartridges, envelope filters, ceramic filters and sintered metal fibre filters.

They have an inlet port at 90° to the outlet port.

The pulse jet valves differ in types with an integrated pilot valve or with external pneumatic control.

The special design ensures extremely fast opening, high flow and easy installation.

Optionally, we also offer versions with ATEX certified pilot valves.

A well thought-out structure and a fast delivery time for spare parts such as diaphragms, springs and coils enable simple maintenances.

Support and Services:

Our Product Technical Support team for Pulse Jet Valves is dedicated to assisting customers with any technical inquiries, troubleshooting, and product-related questions. We provide comprehensive support to ensure the proper functioning and optimal performance of our valves.

In addition to technical support, we offer a range of services for Pulse Jet Valves, including installation assistance, maintenance guidelines, and repair services. Our team of experts is committed to delivering top-notch services to our customers to enhance the longevity and efficiency of the valves.

Packing and Shipping:

Product Name: Pulse Jet Valves

Description: High-quality pulse jet valves for industrial applications.

Package Contents:

• 1 x Pulse Jet Valve
• Mounting hardware
• Installation instructions

Shipping Information:

• Shipping Method: Standard Shipping
• Estimated Delivery Time: 5-7 business days
• Shipping Cost: Calculated at checkout
