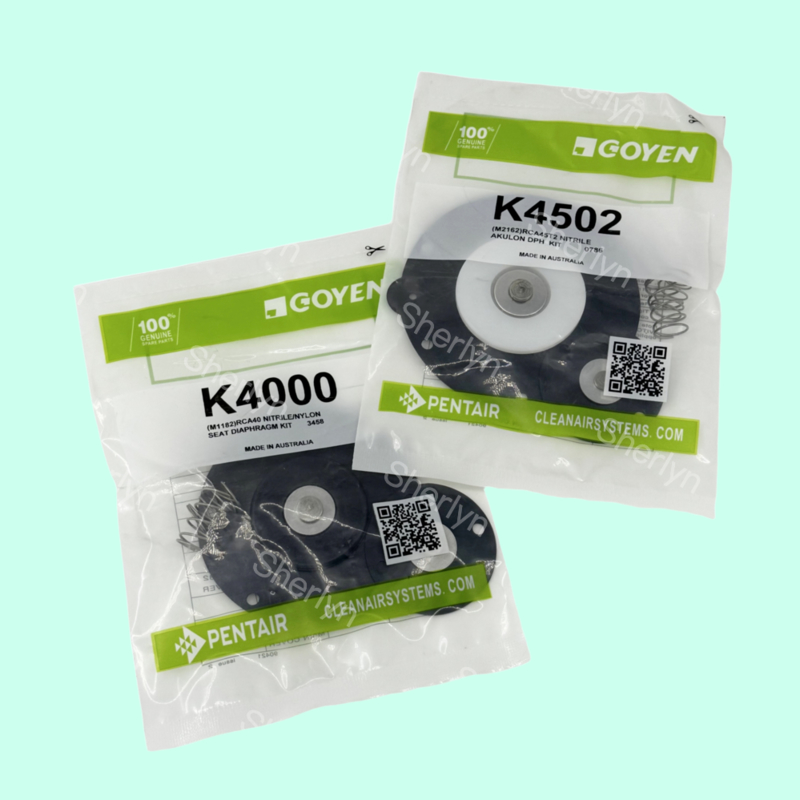

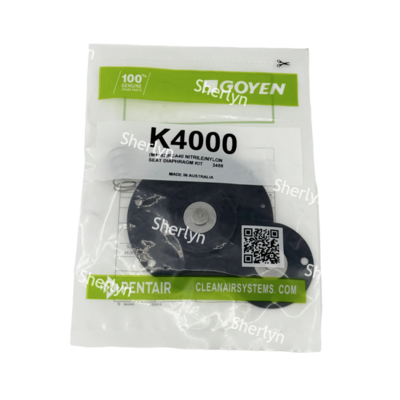

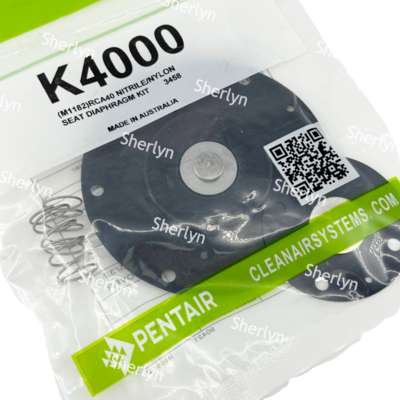

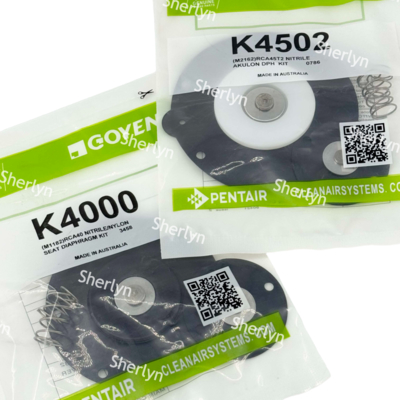

K4000 M1182 Nylon Seal Diaphragm Repair Kit For Goyen CA40DD/RCA40DD Pulse Valve Nitrile Rubber Nylon Tray

Product Description:

K4000 (M1182), K4007 (M1156) Diaphragm for Goyen pulse valve CA40MM, RCA40MM; NBR material is standard, working temperature range is -5 to +80 ℃; VITON material is optional, for high temperature, working temperature range is -10 to +120 ℃. Pulse jet valves are indirect operated solenoid valves especially designed for dust collector systems. When the solenoid is energized, trapped air above a diaphragm is quickly exhausted causing a high pressure difference across the diaphragm. Thereby the diaphragm is suddenly opened.

Applications:

Bag/filter cartridge dust collector pulse cleaning: This system is used for applications such as cement plant kiln tail dust removal and steel plant blast furnace dust removal. Each valve controls 20-50 filter bags, and the membrane operates at high frequency (≥ 1 time/minute).

High temperature/corrosive gas treatment: Designed for treating waste incineration flue gas with FKM film resistant to high temperature of 200 ℃. It is also suitable for handling acidic and alkaline waste gas from chemical plants using EPDM membrane resistant to pH 3-11 corrosion.

Special medium environment: This system is ideal for environments like the food and pharmaceutical industry with EPDM food grade film for anti-pollution capabilities. It also works well in oil containing compressed air systems with NBR diaphragm that is oil resistant to guarantee sealing.

Strict physical conditions: The system can handle high-pressure impact scenarios with a CA62T/CA76T double diaphragm structure pressure of 0.85MPa. It is also suitable for high humidity environments like cement raw material grinding with dust removal and anti-condensation features.

Ordering Number of Diaphragm For Goyen Pulse Valve:

Support and Services:

The Product Technical Support and Services for the Pulse Valve Diaphragm include:

- Installation guidance and assistance

- Troubleshooting support for any operational issues

- Maintenance recommendations and schedules

- Performance optimization tips

- Product training and education

Packing and Shipping:

Product Packaging:

The Pulse Valve Diaphragm is carefully packaged in a durable cardboard box to ensure safe transportation. The diaphragm is securely wrapped in protective material to prevent any damage during shipping.

Shipping:

Orders are typically processed and shipped within 1-2 business days. We use reputable shipping carriers to deliver your Pulse Valve Diaphragm safely and efficiently to your desired address. You will receive a tracking number to monitor the delivery status of your order.
