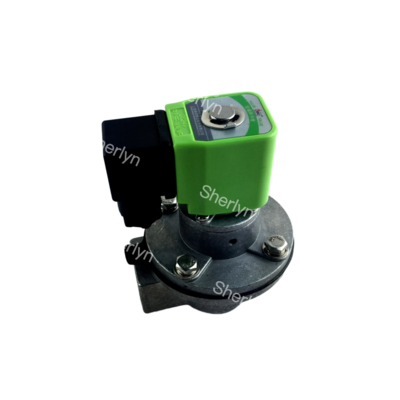

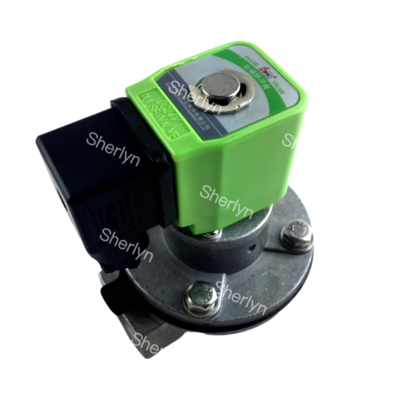

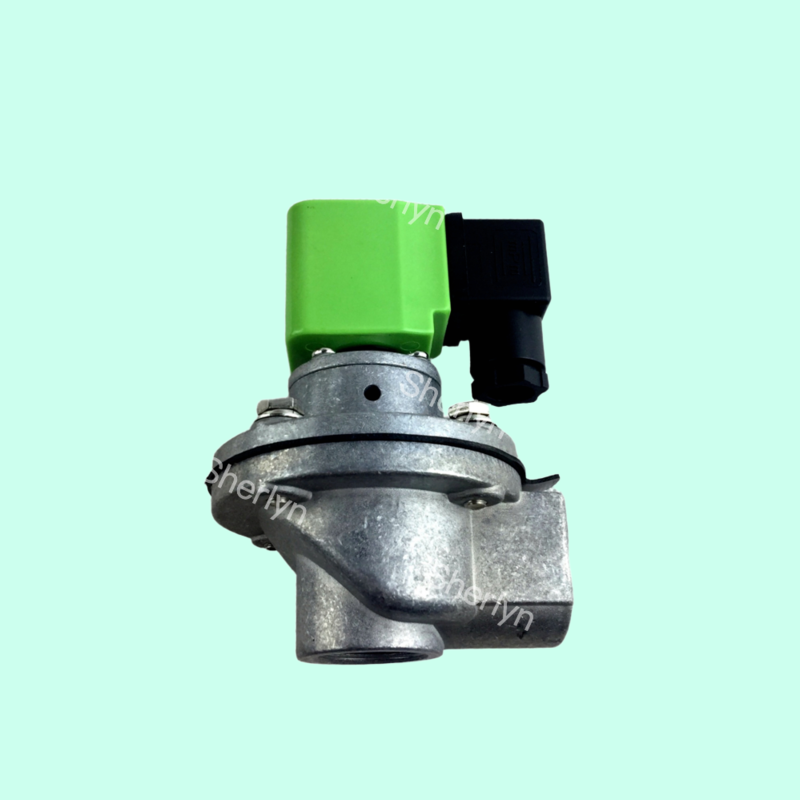

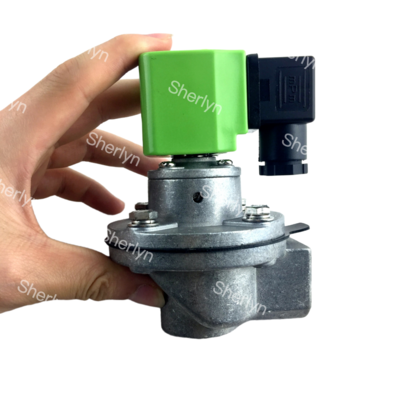

Bag Equipped With 3/4 Inch BFEC New DMF-Z-20 Pulse Valve Right Angle Bag Filter

Product Description:

The DMF series of dust collector valves are categorized based on their installation structures, each designed for specific working conditions:

The right angle valves feature a 90-degree import and export angle, offering a compact structure that saves space by 5 units.

Typical model: DMF-Z-25/40S, ideal for high dust environments in steel and cement plants.

Advantages: Easy installation by directly connecting the airbag and spray pipe.

The direct type valves have a 180-degree import and export angle with low airflow resistance, suitable for small and medium-sized dust removal units.

Typical model: DMF-T-20 (diameter 20mm), commonly used in wood processing and food industries.

Parameters: Working pressure of 0.4~0.7MPa, diaphragm life exceeding 1 million cycles.

The submerged valves have the valve body embedded in the airbag installation, offering high circulation efficiency and are suitable for low-pressure gas source scenarios.

Typical models:

• DMF-Y-80 (3.5 inches): Provides large spray coverage area, enhancing dust removal efficiency.
• DMF-Y-102SA: Achieves a 4-inch injection effect with a 45% increase in injection volume compared to standard 3-inch valves.
• DMF-Y-76S/90S: Large diameter design (76mm~102mm), suitable for applications like cement kiln tails and waste incineration.

Applications:

Iron and Steel Metallurgy: Used for high-temperature and high dust environments such as sintering heads and blast furnace gas purification, requiring the use of a cooler (temperature ≤ 60 ℃). It is recommended to use a DMF-Z right angle valve or submerged valve.

Cement Manufacturing: Kiln tail dust collector, raw material grinding dust removal, compatible with DMF-Y submerged valve (such as DMF-Y-80), resistant to ambient temperature dust (<80 ℃).

Garbage Incineration: Fluorine rubber (FKM) membrane submerged valves (such as DMF-Y-62S) are required for acid flue gas treatment, which can increase corrosion resistance by 8 times.

Wood Processing/Food Chemical Industry: Sawdust or powder pneumatic conveying scenarios, suitable for straight through valves (DMF-T series), requiring oil-free dry air (oil content<5ppm).

Bunker Arch Breaking: The material bridge in the coal powder silo and grain silo is broken by pulse airflow, with a frequency of ≤ 30 times/minute.

Pneumatic Conveying Blockage Removal: Install pulse valves at pipeline blockage points to instantly spray and clear powder materials (such as plastic particles and food grade calcium carbonate).

Technical Data of  Z series Right Angle Pulse Jet Valves:
