Casa ProdottiDiaframma della valvola a impulsi

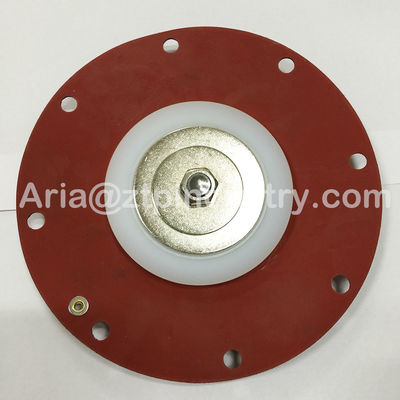

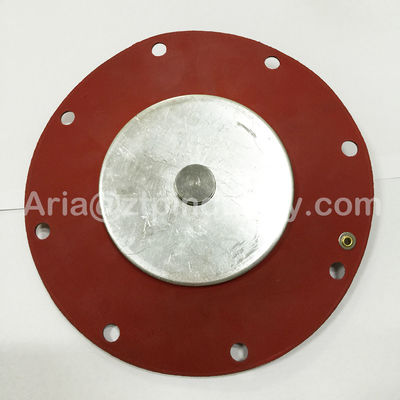

Diaphragm For 2.5'' Taeha Pulse Valve TH-4460-B TH-5460-S

Diaphragm For 2.5'' Taeha Pulse Valve TH-4460-B TH-5460-S

  • Diaphragm For 2.5'' Taeha Pulse Valve TH-4460-B TH-5460-S
  • Diaphragm For 2.5'' Taeha Pulse Valve TH-4460-B TH-5460-S
  • Diaphragm For 2.5'' Taeha Pulse Valve TH-4460-B TH-5460-S
Diaphragm For 2.5'' Taeha Pulse Valve TH-4460-B TH-5460-S
Dettagli:
Marca: Taeha
Certificazione: CE
Termini di pagamento e spedizione:
Minimum Order Quantity: 1
Prezzo: Negoziabile
Packaging Details: Carton
Delivery Time: 1-7Work Days After Payment
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 5000 Pieces/1Month
Contatto
Descrizione di prodotto dettagliata
Materiale del sedile: Nylon, gomma, ptfe Colore: Nero, Verde, Rosso
Nome prodotto: Diaframma della valvola a impulsi Dimensione della porta: 3/4 ''
Materiale diaframma: TPE, NBR, EPDM, FKM
Evidenziare:

2.5 inch pulse valve diaphragm

,

Taeha TH-4460-B diaphragm

,

pulse valve diaphragm with warranty

Product Description:

Connection Type:

Type B: Threaded connection.
Type C: Compression fitting connection.
Type F: Flange inlet and hose clamp outlet connection.
Type M: Pulse valve integrated into the air manifold.
Type S: Straight threaded type with straight-through inlet and outlet; only available in a 2.5-inch pipe size.

Port Size Specification:

Right-angle pulse valves: Typically 1–3 inches.
Submerged pulse valves: Typically 1–4 inches.
Flanged pulse valves: Typically 1–1.5 inches.
Quick-connect pulse valves: Typically 3/4–1.5 inches.
Straight-through pulse valves: Typically 3/4–2.5 inches.

Operating Environment Adaptability:

Ambient temperature: Generally required to be -10°C to 55°C; for outdoor environments, the temperature can be as low as -20°C.
Relative humidity: Generally not more than 85%.
Working medium: Clean air.

Blowing Air Supply Pressure:

Right-angle electromagnetic pulse valves: Generally 0.3–0.6 MPa.
Submerged electromagnetic pulse valves: Usually 0.2–0.3 MPa, and can also be used at 0.3–0.6 MPa.

Operating Voltage and Current of Electromagnetic Pilot Valve:

When the voltage is DC24V, the current is 0.8A.
When the voltage is AC220V, the current is 0.14A.
When the voltage is AC110V, the current is 0.3A.

Key Notes on Technical Terminology:

Pulse Valve: A type of valve used in dust removal systems (e.g., baghouse dust collectors) to release compressed air in short, intense bursts (pulses) for cleaning filter bags.
Submerged Pulse Valve: A valve installed inside the air manifold (submerged in the air chamber), commonly used in large-scale dust collectors for more uniform air distribution.
Electromagnetic Pilot Valve: A small solenoid valve that controls the opening/closing of the main pulse valve by regulating air pressure, serving as the "control core" of the pulse valve.
Blowing Air Supply Pressure: The pressure of compressed air used to generate the cleaning pulse; it directly affects the dust removal efficiency of the filter system.



Technical Parameters:

Seat Material Nylon, Rubber, PTFE
Product Name Pulse Valve Diaphragm
Port Size 3/4''
Brand name Taeha
Diaphragm Material TPE, NBR, EPDM, FKM
Color Black, Green, Red


Applications:

Compatible Models:
ITSPK1-4825/5825 models are compatible with 1-inch pulse valves such as TH-4825-B, TH-5825-C, TH-5840-F, TH-5825-M, etc; MD01-30 is compatible with TH-5830-B, TH-5430-B, and TH-4830-B pulse valves that are 1 and 1/4 inches in size; MD03-50M is compatible with 2-inch TH-5450-B, TH-4450-B, TH-5450-M, TH-4450-M pulse valves, etc.

Material Parameters:
The membrane is usually made of nitrile rubber (NBR) or fluororubber (FKM) material. Nitrile rubber generally has a temperature resistance range of -10 ℃ to 70 ℃, while fluororubber has a temperature resistance range of -10 ℃ to 200 ℃. Metal components and metal plates are generally made of stainless steel, and the membrane is made of nitrile rubber imported from Japan, with adhesive imported from the United States. Some rubber membranes are also reinforced with fabric.

Applicable Pressure Range:
In general, the Taeha pulse valve maintenance capsule can adapt to a pressure range of 0.1MPa to 0.8MPa.

Components Included:
Typically, each repair kit includes a diaphragm component, and some styles may come with one spring, such as the ITSPK1-4825/5825 repair kit and the MD03-50M repair kit.

Service Life:
Under normal operating conditions, the key components of the membrane in the maintenance kit have a service life of no less than 1 million cycles.

Operation Time Parameters:
Taking the MD01-30 model as an example, the recommended opening time range is 50 milliseconds to 500 milliseconds, and the recommended pulse interval time is 1 minute or longer.

Packaging Specifications:
A single film kit is usually individually packaged in a plastic bag, and 10 to 20 sets will be packed into an outer packaging box.



Packing and Shipping:

Product Name: Pulse Valve Diaphragm

Description: High-quality diaphragm for pulse valves, made of durable material for long-lasting performance.

Package Contents: - 1 Pulse Valve Diaphragm - Instruction Manual

Packaging: The diaphragm is carefully wrapped and sealed in a protective plastic cover to prevent damage during transit.

Shipping: We offer fast and reliable shipping options to ensure your product reaches you safely and on time.
