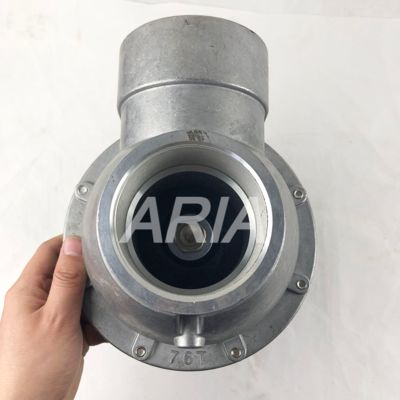

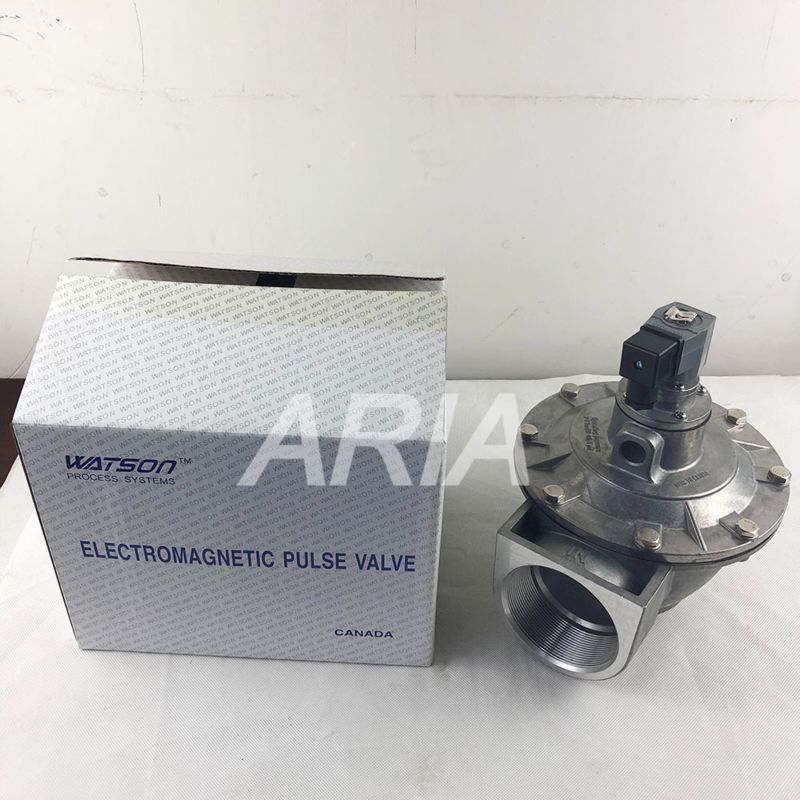

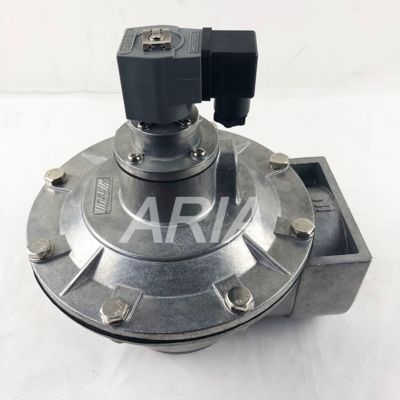

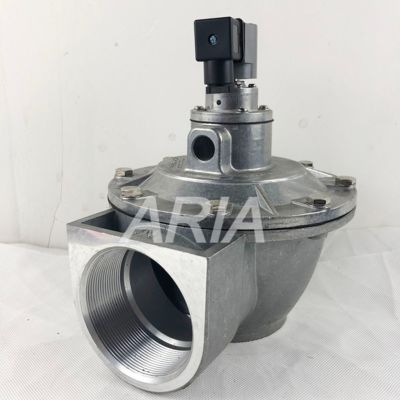

3" DN76 Wps-Ca/Tg76 Watson Solenoid Diaphragm Pulse Valve Right Angle Pulse Valve

Product Description:

Connection Specification: Features a 3-inch submerged design, suitable for installation inside air receivers (air tanks).

Operating Pressure Range: Typically ranges from 1.5 bar to 8 bar.

Operating Temperature:
Standard version: Suitable for an ambient temperature of -40°C to +100°C.
High-temperature version: Operable in an environment of -20°C to +200°C.

Protection Class: Achieves IP65, providing dust resistance and protection against water spray from certain directions.

Weight: Approximately 11 kg.

Technical Principle: Adopts pulse electromagnet technology. Through the rapid attraction and release of the pulse electromagnet, high-speed pulsed airflow is generated, enabling rapid on-off control of fluid and regulation of flow direction.

Material Composition:
The 3/4-inch upper cover is generally made of die-cast aluminum.
The 3-inch submerged valve body is also constructed from die-cast aluminum.
The diaphragm is usually made of materials such as TPE (Thermoplastic Elastomer) (selected based on specific working conditions).

Key Technical Terminology Supplementary Explanation:
Submerged Pulse Valve: A specialized pulse valve installed inside the air receiver (instead of being mounted externally). It directly releases pulsed air into the filter bag area, reducing airflow resistance and improving dust-cleaning efficiency, which is widely used in large-scale baghouse dust collectors.
Die-Cast Aluminum: A metal processing material formed by injecting molten aluminum into a mold under pressure. It has the advantages of high structural strength, good dimensional accuracy, and lightweight, making it suitable for manufacturing valve bodies and covers that require both pressure resistance and portability.
TPE (Thermoplastic Elastomer): A flexible material combining the elasticity of rubber and the processability of plastic. It exhibits excellent wear resistance, aging resistance, and temperature adaptability, making it a common choice for pulse valve diaphragms (especially in medium-temperature working conditions).
Air Receiver (Air Tank): A pressure vessel in the dust collector system used to store compressed air. Installing the submerged pulse valve inside it ensures stable air pressure during the pulse blowing process, avoiding pressure fluctuations that affect cleaning performance.

Technical Parameters:

Applications:

The WATSON Pulse Jet Valves (Model: WPS-CA/TG76) are versatile and reliable diaphragm valves designed for various industrial applications where pulse jet cleaning systems are required. These high-quality valves are ideal for controlling the flow of air in pulse jet dust collector systems.

With CE certification and a minimum order quantity of 1 , these pulse jet valves offer exceptional performance and durability. The pneumatic operation of the valves ensures efficient and reliable functioning in demanding environments.

The diaphragm material made of NBR and FKM provides excellent resistance to abrasion and wear, making these valves suitable for long-term use. The valves are specifically designed to handle air as the media, ensuring compatibility with a wide range of industrial applications.

The Port Size of 3'' Inch allows for efficient airflow control, making these valves suitable for medium to large-scale dust collection systems. The WATSON Pulse Jet Valves are easy to install and maintain, offering a cost-effective solution for pulse jet cleaning systems.

These pulse jet valves are perfect for various application occasions and scenarios, including but not limited to:

• Industrial Dust Collection Systems
• Chemical Processing Plants
• Power Generation Facilities
• Manufacturing Plants

With negotiable prices and packaging details customizable as per clients' requirements , these pulse jet valves offer flexibility and convenience. The delivery time of 1-7 work days after payment ensures quick availability, while payment terms such as T/T, Western Union, and Paypal provide ease of transaction.

With a supply ability of 5000 pieces per month , the WATSON Pulse Jet Valves ensure consistent availability for your industrial needs. These valves are designed to meet the requirements of modern industrial applications, providing efficient and reliable performance.

Packing and Shipping:

Product Packaging for Pulse Jet Valves:

The Pulse Jet Valves will be carefully packaged in a sturdy cardboard box to ensure safe transportation. Each valve will be wrapped in protective material to prevent any damage during shipping.

Shipping Information:

Shipping Method: Standard Shipping

Shipping Time: 3-5 business days

Shipping Cost: $10.00
