WATSON WPS-CA/EP102.B WPS-CA/EP102 4'' Submerged Pulse Valve Pulse Jet Valve Diaphragm

Product Description:

Connection Specification: Features a 3-inch submerged design, suitable for installation inside air receivers (air tanks).

Operating Pressure Range: Typically ranges from 1.5 bar to 8 bar.

Operating Temperature:
Standard version: Suitable for an ambient temperature of -40°C to +100°C.
High-temperature version: Operable in an environment of -20°C to +200°C.

Protection Class: Achieves IP65, providing dust resistance and protection against water spray from certain directions.

Weight: Approximately 11 kg.

Technical Principle: Adopts pulse electromagnet technology. Through the rapid attraction and release of the pulse electromagnet, high-speed pulsed airflow is generated, enabling rapid on-off control of fluid and regulation of flow direction.

Material Composition:
The 3/4-inch upper cover is generally made of die-cast aluminum.
The 3-inch submerged valve body is also constructed from die-cast aluminum.

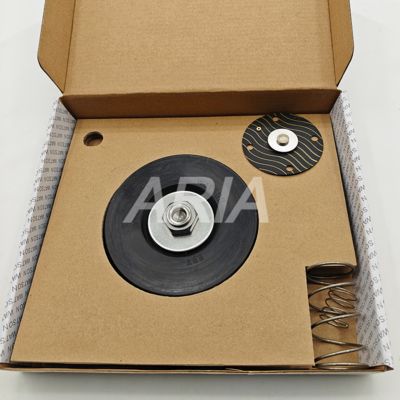

The diaphragm is usually made of materials such as TPE (Thermoplastic Elastomer) (selected based on specific working conditions).

Key Technical Terminology Supplementary Explanation

Submerged Pulse Valve: A specialized pulse valve installed inside the air receiver (instead of being mounted externally). It directly releases pulsed air into the filter bag area, reducing airflow resistance and improving dust-cleaning efficiency, which is widely used in large-scale baghouse dust collectors.
Die-Cast Aluminum: A metal processing material formed by injecting molten aluminum into a mold under pressure. It has the advantages of high structural strength, good dimensional accuracy, and lightweight, making it suitable for manufacturing valve bodies and covers that require both pressure resistance and portability.
TPE (Thermoplastic Elastomer): A flexible material combining the elasticity of rubber and the processability of plastic. It exhibits excellent wear resistance, aging resistance, and temperature adaptability, making it a common choice for pulse valve diaphragms (especially in medium-temperature working conditions).

Air Receiver (Air Tank): A pressure vessel in the dust collector system used to store compressed air. Installing the submerged pulse valve inside it ensures stable air pressure during the pulse blowing process, avoiding pressure fluctuations that affect cleaning performance.

Technical Parameters:

Brand name	WATSON
Media	Air
Temperature	-25 To +80℃
Diaphragm Material	NBR, FKM
Port Size	4'' Inch
Power	Pneumatic

Applications:

Pulse Jet Valves, such as the WATSON WPS-CA/TG76 model, are versatile products that find application in various industrial scenarios due to their unique features and capabilities. These Right angle pulse valves are specifically designed for controlling the flow of air in pulse jet dust collector systems, making them essential components in dust filtration processes across different industries.

The electromagnetic Pulse Jet Valves from WATSON, with CE certification, are suitable for a wide range of application occasions where efficient and reliable air flow control is required. These valves are commonly used in industries such as cement, steel, pharmaceuticals, food processing, and more.

With a minimum order quantity of 1, pricing negotiable, and packaging details customizable to client requirements, the WATSON Pulse Jet Valves offer flexibility and convenience to buyers. The quick delivery time of 1-7 work days after payment ensures minimal downtime for customers, making them a preferred choice for urgent requirements.

Accepted payment terms including T/T, Western Union, and Paypal further enhance the accessibility of these valves to a wide range of customers. The supply ability of 5000 pieces per month guarantees a steady availability of these essential components for industrial operations.

The diaphragm material options of NBR and FKM ensure compatibility with different operating conditions, while the media handling capability limited to air and temperature range of -25 to +80℃ make these valves suitable for diverse environmental conditions.

Whether it is for new installations or replacement of existing components, the WATSON Pulse Jet Valves in 3'' inch port size offer a reliable and efficient solution for air flow control in pulse jet dust collector systems, meeting the needs of various industries with their high performance and durability.



Packing and Shipping:

Product Packaging for Pulse Jet Valves:

The Pulse Jet Valves are carefully packaged in sturdy cardboard boxes to ensure safe transportation. Each valve is wrapped in protective packaging material to prevent any damage during shipping.

Shipping Information:

Once the order is placed, the Pulse Jet Valves will be shipped via a reliable courier service. Customers will receive a tracking number to monitor the delivery status of their package. The valves will be delivered to the provided address within the specified timeframe.
