Product Description:
PU220 Series – Direct Acting Brass Solenoid Valve
The PU220 Series is a 2/2-way normally closed solenoid valve that operates directly, providing dependable ON/OFF control for a variety of neutral fluids such as water, air, and light oil. It features a sturdy brass body combined with a spring-return mechanism, allowing it to function effectively even at zero pressure differential. This characteristic makes it particularly suitable for applications that demand immediate response under low-pressure conditions.
Its compact and lightweight design ensures effortless installation, especially in environments where space is limited. The valve is available with port sizes ranging from 1/8" to 1" and orifice sizes between 1.5mm and 25mm. The PU220 Series guarantees reliable performance with minimal leakage, providing accurate media control across a broad spectrum of industrial uses.

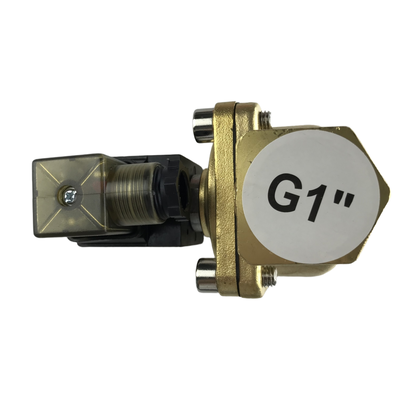

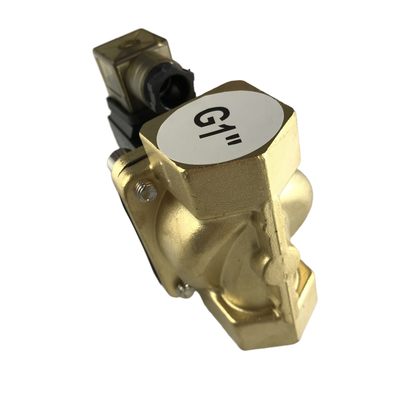

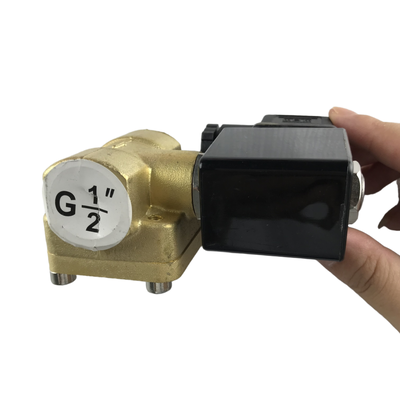

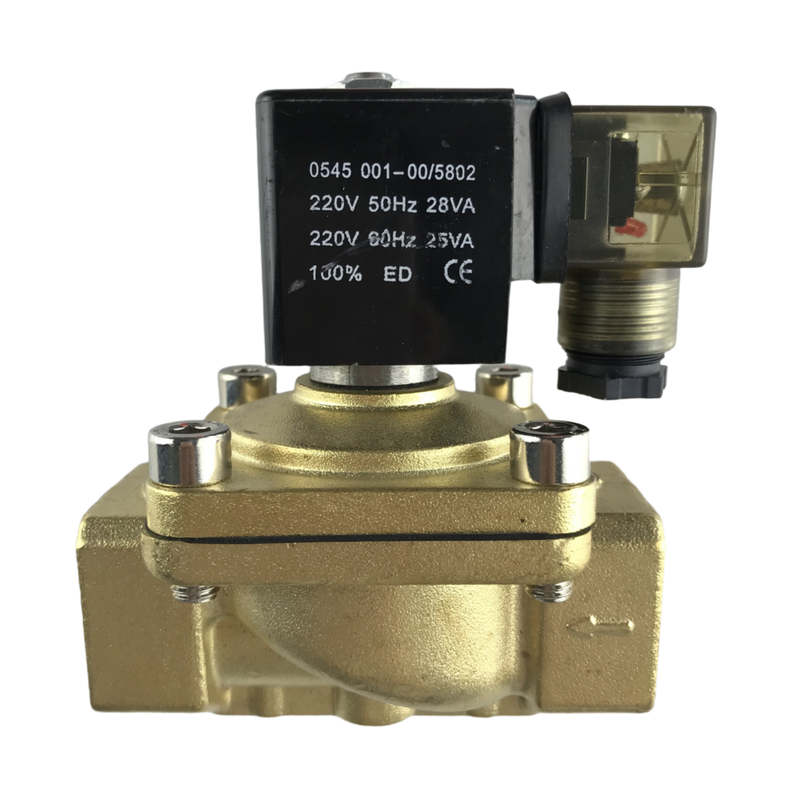

PU225 Series – Pilot Operated Brass Solenoid Valve
The PU225 Series consists of 2/2-way normally closed solenoid valves that are pilot-operated, specifically crafted to handle high-flow applications involving water, air, and light oil. It incorporates a pressure-assisted piston design which necessitates a minimum differential pressure of 0.05 MPa (0.5 Bar) to function correctly. This makes the PU225 highly effective in large-diameter piping systems.
Built with a robust brass body and equipped with seals made from NBR, Viton, or EPDM, the valve ensures excellent flow capacity and durability even in challenging industrial environments. With port sizes available from 3/8" to 2" and orifice sizes up to 50mm, the PU225 Series offers exceptional CV values, enabling maximum throughput during continuous-duty operations.
Features:
PU220 Series – Direct Acting
The PU220 Series features a direct acting mechanism with a spring-return system that enables operation from zero pressure differential (0 MPa). This design makes it highly responsive and effective at low pressures.
Its compact and lightweight construction offers a space-saving design with a small footprint, making it ideal for installation in confined or tight areas.
Constructed from durable forged brass, the valve body provides excellent resistance against corrosion while maintaining strong structural integrity for long-term reliability.
This series supports multiple sealing options, including standard NBR seals, with optional FKM (Viton) and EPDM seals available to ensure compatibility with a variety of media types.
The PU220 Series offers a wide range of orifice sizes, from 1.5mm up to 25mm, to accommodate diverse flow requirements and applications.
It supports multiple voltage options such as AC220V, AC110V, AC24V, DC24V, DC12V, among others, providing flexibility for different electrical systems.
Equipped with Class B coil insulation, the valve ensures reliable performance and thermal durability during operation.
An IP65 rated coil enclosure provides protection against water and dust ingress, enabling dependable functionality even in harsh environments.
Designed for 100% duty cycle, this valve is suitable for continuous operation without the risk of overheating.
PU225 Series – Pilot Operated
The PU225 Series features a pilot-operated, or pressure-assisted, design that requires a minimum differential pressure of 0.05 MPa (0.5 Bar) to operate reliably. It is especially suitable for high-flow and large-diameter applications.
This series boasts high flow capacity with large orifice sizes up to 50mm and exceptional flow coefficients (CV values) reaching as high as 48, ensuring maximum throughput.
Its robust brass body guarantees excellent mechanical strength and a high level of corrosion resistance, providing durability and long service life.
Multiple seal options are available, including NBR, FKM (Viton), and EPDM, allowing usage with various media types.
The PU225 Series operates over a wide pressure range from 0.05 to 1.0 MPa (0.5–10 Bar), making it versatile for numerous system requirements.
Port sizes vary from 3/8" to 2", offering flexibility for integration into different piping systems.
With an IP65-rated coil enclosure, the valve is protected against dust and water ingress, ensuring dependable performance in challenging conditions.
This series is designed for horizontal mounting to optimize operational efficiency and performance.
Like the PU220, it supports a 100% duty cycle rating, enabling continuous operation without overheating concerns.
Applications:
PU220 Series – Direct Acting
The PU220 Series is designed for a variety of applications across multiple systems. In water systems, it provides reliable general water control, supports hot water circulation, and aids in water treatment processes. Its versatility makes it suitable for managing fluid flow efficiently.
For compressed air systems, the PU220 Series is used in pneumatic control lines and industrial automation, ensuring precise and responsive operation. When it comes to light oil systems, it is capable of controlling light oil with a viscosity below 50 CST, commonly found in industrial equipment.
In HVAC systems, it manages heating and cooling water control, playing a vital role in building services. The series is also applicable in various industrial equipment setups, facilitating general fluid control in manufacturing and processing machinery. Furthermore, its zero-differential capability makes it an ideal choice for vacuum systems.
PU225 Series – Pilot Operated
The PU225 Series is developed to handle more demanding control requirements, particularly in water distribution networks. It is commonly employed for main water isolation and control within industrial pipelines, ensuring efficient and safe water management.
It also excels in large-scale industrial water systems, supporting extensive water circulation and cooling operations. In compressed air systems, the series handles high-flow pneumatic control and automation lines, catering to demanding industrial needs.
Similar to the PU220, the PU225 manages light oil systems with fluids below 50 CST, optimized for industrial applications. In HVAC and building services, it facilitates large-scale water heating and cooling, maintaining system stability and performance.
Additionally, the PU225 Series is essential for process plant utilities, providing utility water distribution and isolation. It also plays a crucial role in water treatment by offering precise flow control in filtration and treatment systems.
