Product Description:
The SMC KQG2H Series are stainless steel 316 (SUS316) one-touch fittings designed for applications requiring high corrosion resistance, chemical resistance, and high temperature tolerance. These fittings feature a push-to-connect design, with metal parts made of SUS316 stainless steel and seal parts made of special FKM material. They are grease-free and suitable for use with steam.
Compared to the previous KQG series, this series is 30% smaller in volume and 62% lighter in weight, available in both metric and inch sizes.
Features:
Premium Material
Metal parts made of SUS316 stainless steel , providing better corrosion and pitting resistance than 304 stainless steel, especially in chloride environments.
Compact & Lightweight
30% smaller volume and 62% weight reduction compared to the traditional KQG series, ideal for space-constrained applications.
High Temperature Resistance
Fluid temperature range from -5°C to +150°C.
Wide Compatibility
Applicable to various tubing materials including FEP , PFA , nylon , soft nylon , polyurethane , polyolefin , etc.
Multi-Fluid Application
Suitable for air, water, steam, and other fluids.
Safe & Reliable
Operating pressure range -100kPa to 1MPa, with a proof pressure of 3.0MPa.
Technical Parameters:
| Fluid |
Air, Water, Steam |
| Seal parts |
Special FKM |
| Fluid temperature |
-5 To 150˚C |
| Metal parts |
Stainless Steel 316 |
| Proof pressure |
3.0 MPa |
| Applicable tubing material |
FEP PFA Nylon Soft Nylon |
| KQG2H04-00 |
KQG2H04-06 |
KQG2H04-01S |
KQG2H08-01S |
KQG2H12-03S |
KQG2H04-01 |
KQG2H08-02 |
KQG2H12-02 |
| KQG2H06-00 |
KQG2H06-08 |
KQG2H04-02S |
KQG2H08-02S |
KQG2H12-04S |
KQG2H04-02 |
KQG2H08-03 |
KQG2H12-03 |
| KQG2H08-00 |
KQG2H08-10 |
KQG2H06-M5 |
KQG2H08-03S |
KQG2H16-03S |
KQG2H06-01 |
KQG2H10-01 |
KQG2H12-04 |
| KQG2H10-00 |
KQG2H10-12 |
KQG2H06-01S |
KQG2H10-01S |
KQG2H16-04S |
KQG2H06-02 |
KQG2H10-02 |
KQG2H16-03 |
| KQG2H12-00 |
KQG2H12-16 |
KQG2H06-02S |
KQG2H10-02S |
KQG2H10-04S |
KQG2H06-03 |
KQG2H10-03 |
KQG2H16-04 |
| KQG2H16-00 |
KQG2H04-M5 |
KQG2H06-03S |
KQG2H10-03S |
KQG2H12-02S |
KQG2H08-01 |
KQG2H10-04 |
|
Applications:
Food & Pharmaceutical Industry: Complies with Japanese Food Hygiene Law requirements, suitable for food and pharmaceutical equipment.
Semiconductor & Electronics Industry: Ideal for gas and liquid transfer in high-purity environments.
Chemical Processing: Corrosion-resistant characteristics suitable for chemical transfer systems.
High-Temperature Steam Environments: Applicable for equipment requiring steam cleaning or sterilization.
Support and Services:
Our Pneumatic Pipe Fittings product comes with comprehensive Product Technical Support and Services to ensure smooth operation and customer satisfaction. Our team of skilled technicians is available to provide assistance with installation, troubleshooting, maintenance, and repair of the fittings. Additionally, we offer training programs to educate users on the proper use and care of the product. Rest assured that our technical support and services are designed to meet your needs and exceed your expectations.

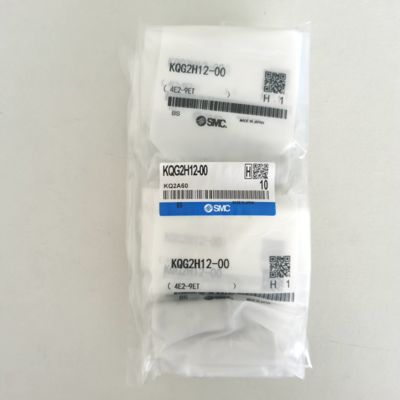

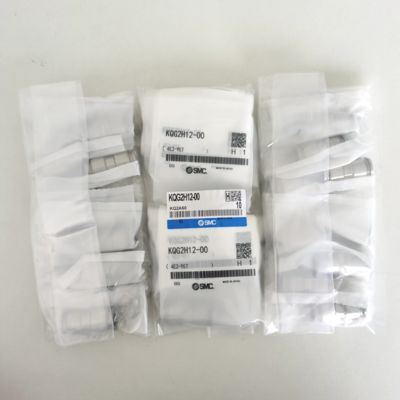

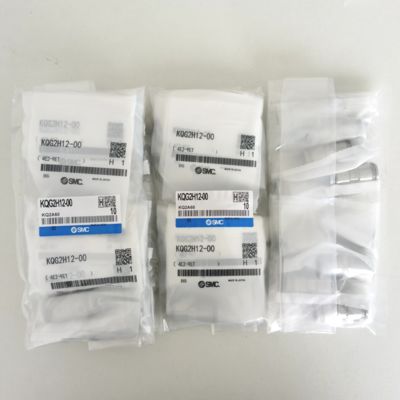

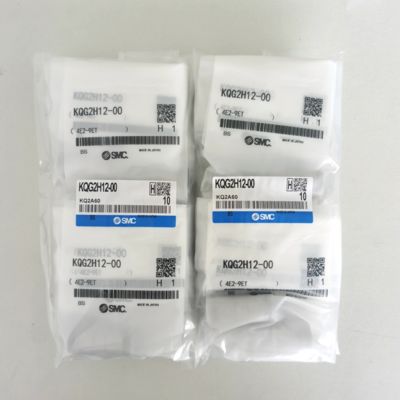

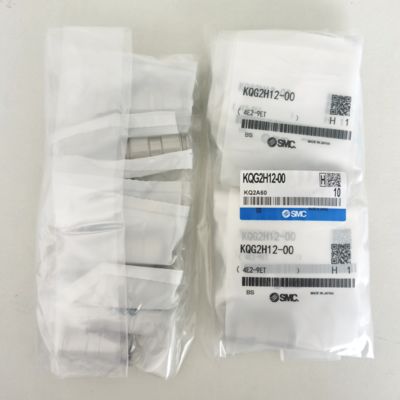

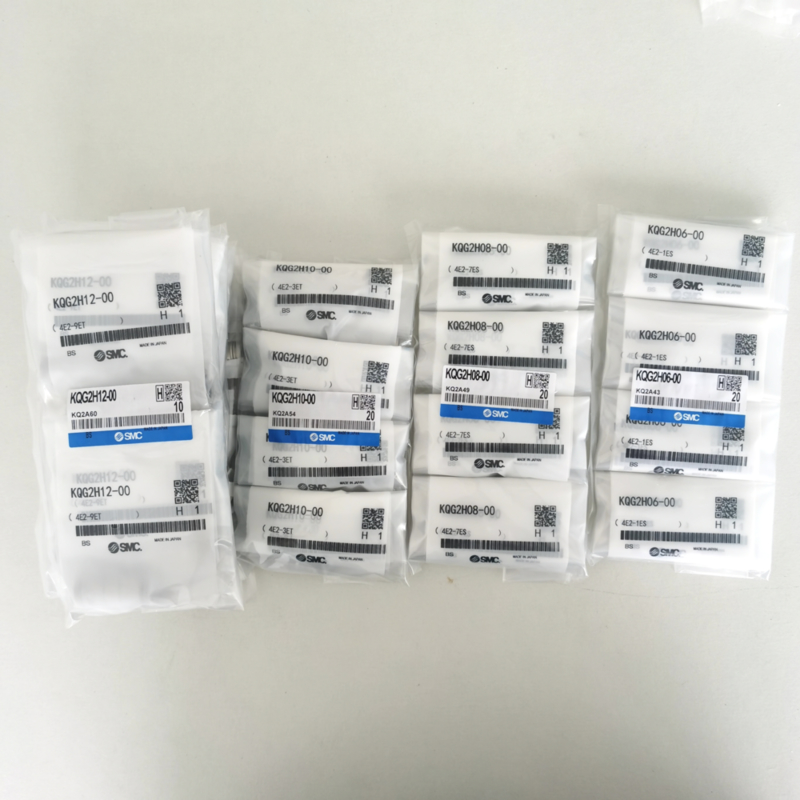

Packing and Shipping:
Product Packaging and Shipping for Pneumatic Pipe Fittings:
Our pneumatic pipe fittings are carefully packaged to ensure safe delivery to our customers. Each fitting is individually wrapped in protective material to prevent any damage during transportation.
For shipping, we use reliable courier services to deliver your order promptly. You can track your package using the provided tracking number to know the exact delivery date.
